Assembly Services

Providing High Quality, Consistent Circuit Board Assembly

  • Quick Turn Assembly 1 day
  • Turnkey Components
  • Low Volume Assembly
  • PCB Fabrication
  • BGA Assembly X-Ray Inspection

PCB Assembly solutions you can trust

From in-depth DFA analysis to machine assembly in as little as one day, we support engineers through all stages of PCB prototyping. Whether you need a single test board or a set of fifty, we provide knowledgeable and fast service on every order.

Colorado PCB Assembly

Colorado PCB Assembly offers quick-turn PCB assembly to customers in the United States. We are flexible, ensuring we meet our customers’ needs quickly.

QUICK-TURN PCB ASSEMBLY

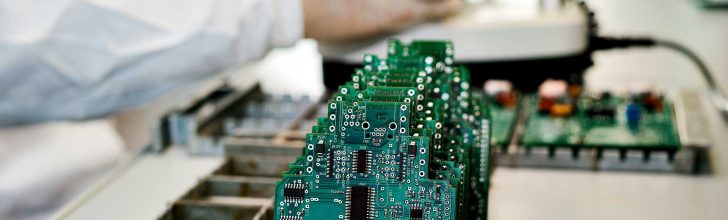

shutterstock_516935290-small

If you have circuit boards that need to be assembled quickly, look no further than Colorado PCB Assembly. We have quick-turn PCB assembly capabilities to meet your project needs and deadlines.

We help our customers shorten their product development life cycle and avoid the tedious process of hand assembly. By utilizing state of the art machinery and software to aid in assembling your project, we can ensure accurate, fast delivery.

We guarantee on-time delivery of very reliable quick turn PCB Assembly for small run, prototype and new product introduction quantities.

We have decades of experience in the PCB Assembly industry, with a focus on helping engineers with small volume projects. We have what it takes to assemble your boards on time and within budget. We also strive to attain the highest quality in our projects.

Through our quick turn PCB assembly service, we can help assemble your PCBs according to your specs, ISO 9001:2015, and J-STD-001 guidelines, internationally accepted PCB assembly standards.

If you need an experienced and reliable PCB Assembly partner that can meet strict requirements and deadlines, please consider Colorado PCB Assembly to fulfill your quick turn PCB Assembly needs.

TURNKEY COMPONENTS

shutterstock_495424990-small

In addition to Quick Turn PCB assembly service, we also offer reliable full turnkey PCB assembly services to save you time and trouble of sourcing your own components.

We take care of the complete process, including the preparation of PCBs, procurement of the PCB components, continuous monitoring of quality, online order tracking, and then final PCB Assembly.

With our full turnkey assembly service, you can quickly advance from concept to product to market. We can take your most complicated project and turn it around for you in just a single day.

For component sourcing, we use a time-tested and quality-controlled procurement system that ensures excellent electronic component sourcing. Are you finding it hard to source any PCB component?

Don’t worry. We have the ability to source obsolete, outdated, difficult-to-find, and long-lead-time parts. We also offer assistance in substituting parts within footprint and value parameters critical to your build.

Our component sourcing service consists of two major options. We either purchase parts from:

  • Your recommended channels or
  • From authorized distributors

We can source your components quickly, thanks to our robust relationships with authorized PCB component distributors.

Need more information about our component sourcing and full turnkey PCB assembly solutions? Just get in touch with us today, we’ll be glad to share more details.

LOW-VOLUME ASSEMBLY

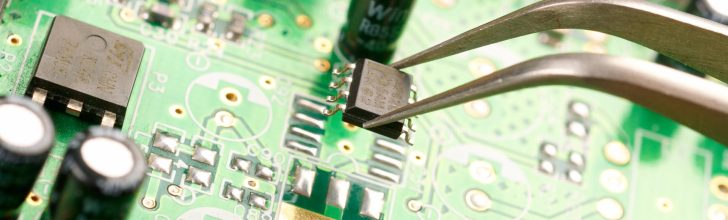

shutterstock_48908626-small

“Low Volume” assembly can mean a single part on a board, a short run of 50-100 boards, or anything in between. It’s not about the quantity, it’s about a different mentality than large-scale production.  In the low-volume world, we build thousands of prototypes, each with their own set of intricacies. We see every SMT component package, so we know when a part is not washable or when a via is going to thieve solder, just because we’ve had the experience with so many different parts in the past.

Are you looking to get a small circuit board run with specialized requirements like component specifications, level of density, assembly technologies, or component packages?  If yes, then Colorado PCB Assembly is the perfect fit.

As a reliable assembler of PCBs, we offer Low-Volume Assembly services in Centennial, Colorado. Our facility is equipped for Low-Volume PCB Assembly with equipment that is geared for a quick setup. For larger builds, we have different assembly lines that we can dedicate to a single build, always leaving room for urgent orders.

Additionally, we can quickly modify assembly-line specifications and product requirements in a very short time.

Other PCB Assembly solution providers might require high-volume orders. When it comes to Low-Volume Assembly runs, we give the same attention and care you would expect with even large-scale PCB services.

Customer satisfaction is our highest priority, and that means every customer gets top-notch attention and service. Additionally, our in-house quality assurance unit will always ensure that your PCBs meet your performance standards.

Contact us today for your Low-volume PCB Assembly solutions.

PCB FABRICATION

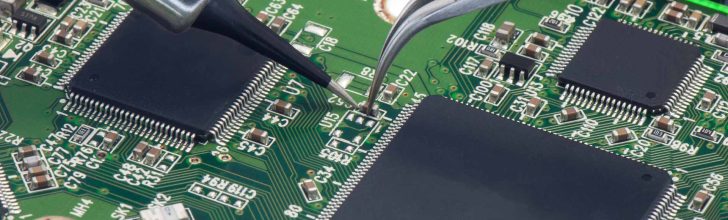

shutterstock_286882379-small

Choosing the right PCB Fabrication solution for your business is a vital step in the creation of a successful electronic product. As a matter of fact, the efficiency, safety, and reliability of your devices can be compromised if you don’t use a high-quality circuit board fabrication processes.

The best way to overcome all the headache is to use high-quality PCB manufacturing processes. And we’re here to help you out.

Even though we don’t manufacture PCBs, we’re in partnership with some of the world’s leading and reputable companies in the United States. The collaboration enables us to offer PCB fabrication solutions.

Whether you need controlled impedance circuit boards, HDI circuit boards or multi-layer PCBs, we’re at your service.

Get in touch with us today.

Other services:

PCB Assembly you can trust, always built on time and per your specifications.

Frequently Asked Questions

What does low-volume mean?

Low-volume means we are able to build just one board. Additionally, it means we can build small production runs. A typical order is between 10 and 50 pieces; however, we are able to build higher quantities.

What are your typical turn times?

We typically quote with a 3, 5, or 10 day turn option, but should you need boards on a 1 day or a 2 day turn, let us know and we will include that in our quote!

Are your turn times reliable?

Yes, not only do we deliver on time, we measure our on-time success by what our customers think is on-time (not what some spreadsheet says).  If it’s not on-time for you, it’s not on time for us.

What are your file requirements?

We require for three sets of files to include:

  1. BOM – preferably in Excel or .csv format (but .txt and .doc are usable).
  2. Gerbers – in RS274X format.
  3. XYRS – this is the pick-and-place file, usually in ascii or .txt. It’s also called the centroid or placement file.
What is the XYRS?

The XYRS file is very helpful to us. Also known as a centroid file or pick-and-place data, this file gives us the X and Y coordinates for each component (X and Y) followed by the rotation (R) – usually in 90 degree increments, and lastly the side (S), referring to top or bottom of the PCB.

Do you usually do turnkey or non-turnkey (consignment)?

About 75% of our builds are turnkey. That way we have control over where the parts come from so we know exactly when they’ll arrive.  Issues can happen during any build – and we prefer to just reorder the parts rather than bother you with the shortage, should one occur.

Where do you order your parts from?

Our approved suppliers list is pretty short. We only order from the most reliable companies, including DigiKey, Mouser, Arrow, and Newark, in addition to the direct manufacturers like CoilCraft, Samtec, and Texas Instruments. Other than these types of trusted suppliers, we do not purchase from any “secondary” chain suppliers.

Are your builds RoHS or leaded?

Whichever you prefer! We default to leaded if the data isn’t available in your files because most of what we build is for internal use or is a prototype. This is so engineers are able to make modifications, which is much easier with leaded solder.

On the quote we email you, we will designate how we plan to build. If you like this changed, just let us know – there is no price difference.

Do you panelize the boards for me?

Yes. If you have us provide the bare fabs, we don’t need anything other than your single-up board files, and we will work with board house to get them arrayed with rails to fit our process.

Can you assemble top and bottom sides?

Yes. 90% of boards we assemble have both top and bottom SMT parts. Our reflow ovens were specifically designed to accommodate parts on top and bottom.

Still have questions? Let us know and we will provide an answer for you.  Email us at sales@coloradopcbassembly.com or call us at 303-981-7525.
