Reflow Soldering in Prototype Assembly

Reflow soldering is a critical process in prototype PCB assembly and electronic manufacturing. It involves attaching electronic components to a PCB by using solder paste, which is a mixture of tiny solder particles and flux, and then heating the assembly to melt the solder, forming electrical connections between the components and the PCB. Here’s a detailed explanation of reflow soldering in prototype assembly:

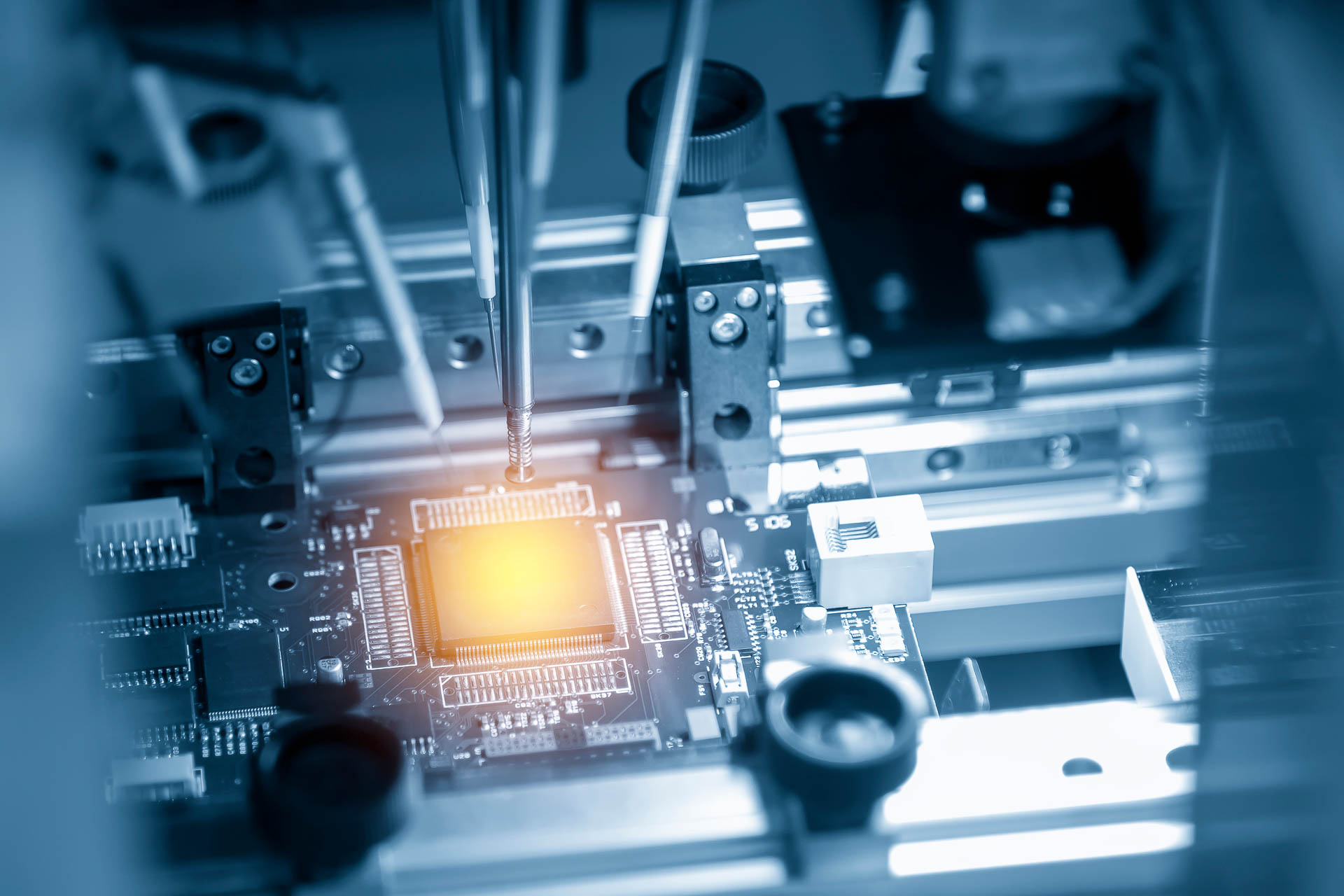

  • Comparison of pick-and-place machine vs. hand assembly in PCB manufacturing.

  • Solder Paste Application: The first step in reflow soldering during prototype assembly is to apply solder paste to the PCB. This is typically done using a stencil, which is a thin, flat sheet with openings that correspond to the component’s footprint on the PCB. The solder paste is spread over the stencil and forced through the openings using a squeegee, depositing a precise amount of paste onto the PCB’s solder pads.

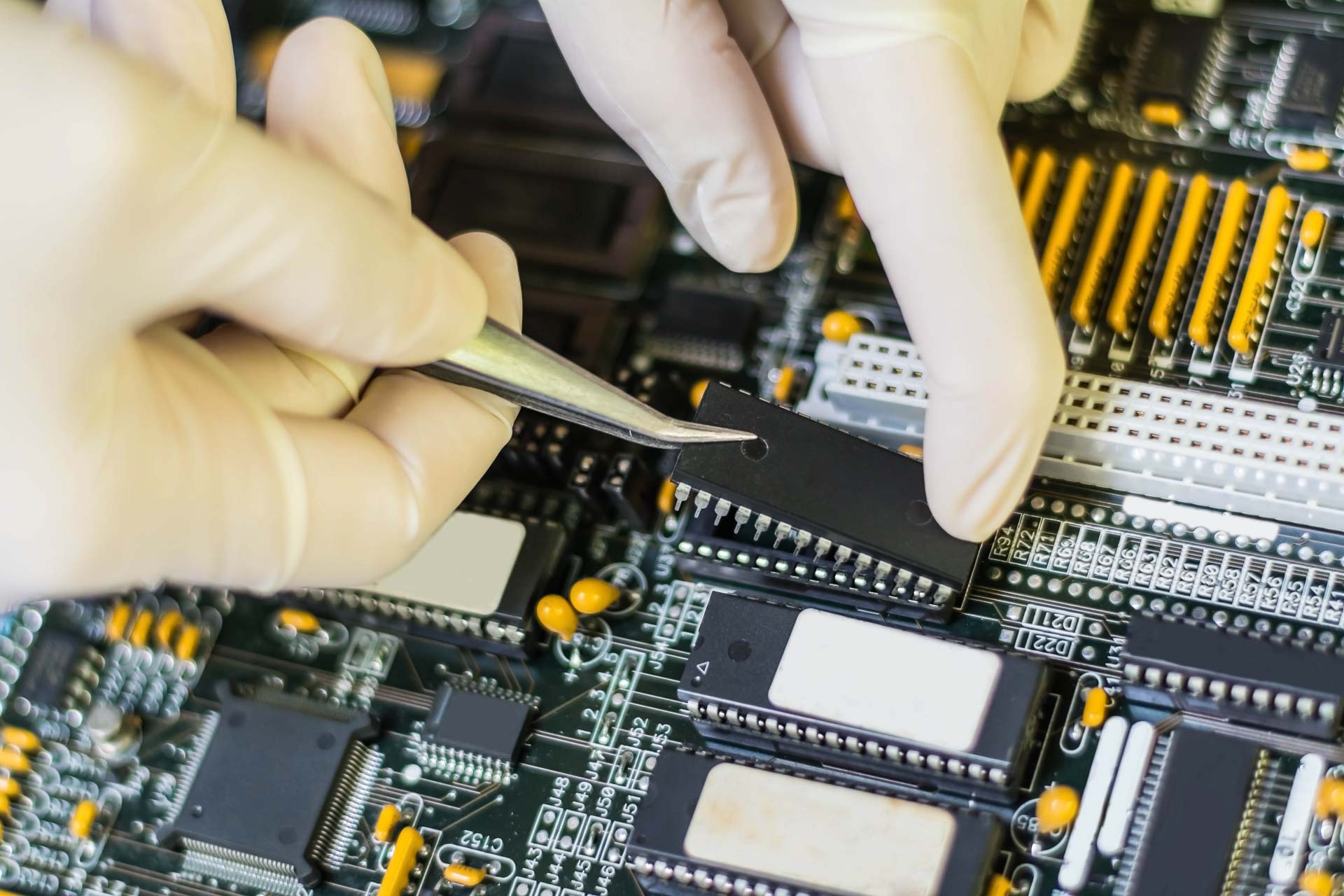

  • Component Placement: After solder paste application, electronic components are carefully placed onto the PCB. These components may include surface-mount resistors, capacitors, integrated circuits, diodes, and more. The components are positioned accurately using automated pick-and-place machines or, in some cases, manual placement for prototype assembly.

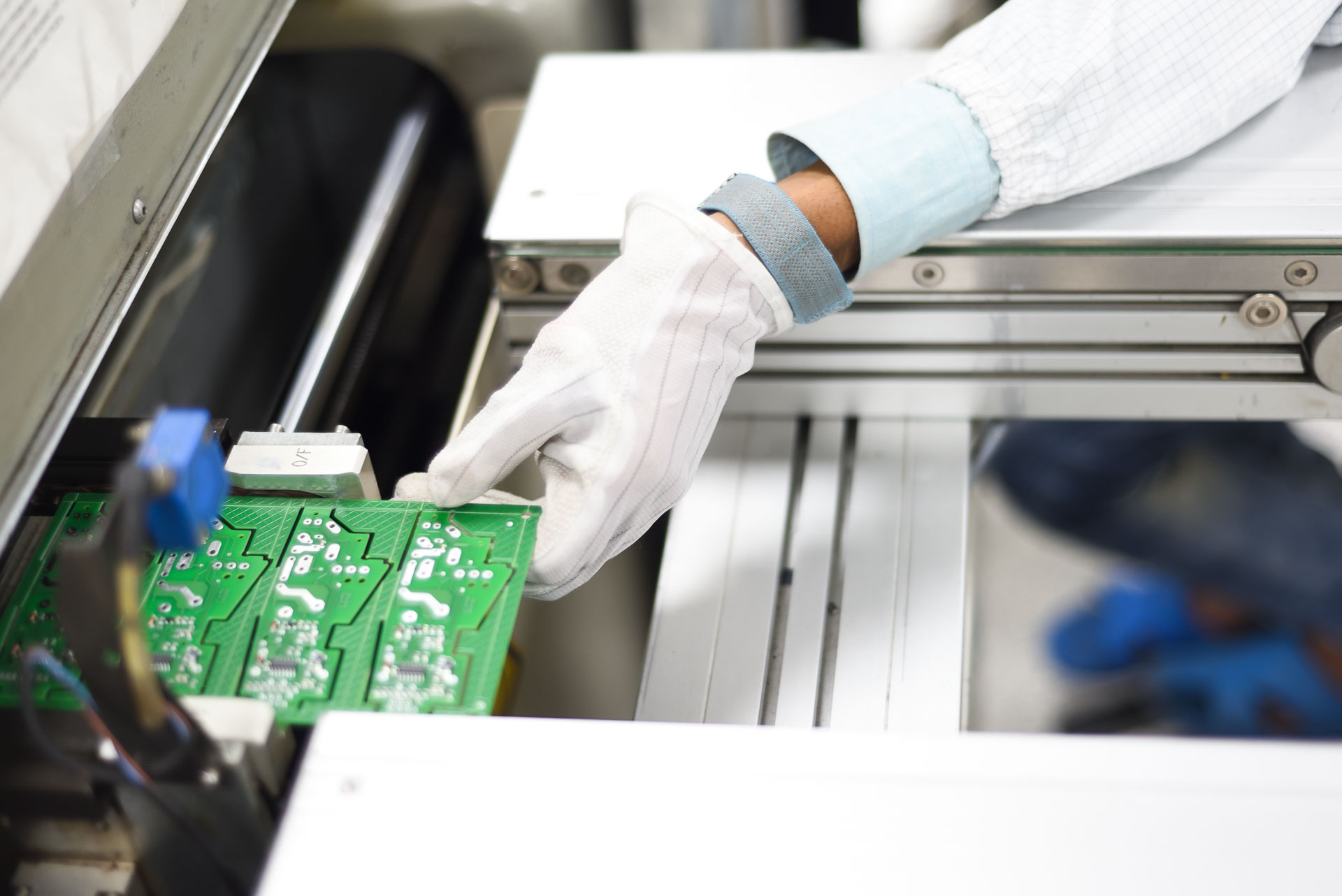

  • Reflow Oven: Once the components are in place, the PCB is transferred to a reflow oven. The oven consists of multiple temperature zones, each with precise control over temperature profiles. The reflow oven gradually raises the temperature of the assembly according to a specific thermal profile.
  • Heating and Melting: During the reflow process, the solder paste undergoes several stages:
    • Preheating: The PCB and components are gradually heated to remove any moisture and flux residues.
    • Soak Zone: The temperature is held steady in this zone to activate the flux and allow it to clean and prepare the solder surfaces.
    • Reflow Zone: In this zone, the temperature is rapidly raised to melt the solder paste. The solder reflows, forming liquid connections between the component leads and the PCB pads.
    • Cooling Zone: The assembly is then cooled slowly to solidify the solder joints. This gradual cooling helps prevent thermal shock and ensures stable connections.
  • Quality Control: After reflow soldering, the assembled PCB is inspected for solder joint quality. Automated optical inspection (AOI) and other quality control measures are often employed to check for issues such as solder bridges, incomplete solder joints, or misaligned components.
  • Additional Assembly Steps: Depending on the specific prototype assembly requirements, additional steps such as conformal coating, cleaning, or secondary soldering processes may be performed.

Reflow soldering is a highly efficient and reliable method for attaching components to PCBs in prototype assembly and high-volume production alike. It offers precise control over soldering parameters, resulting in consistent and robust solder joints. This process is essential for achieving high-quality electronic assemblies, and it plays a vital role in ensuring that prototype PCBs function correctly and reliably for testing and evaluation.
