Why Automated Pick and Place is Superior to Hand Assembly in PCB Assembly

Explore the benefits of pick-and-place automation in PCB manufacturing for precision, speed, and reliability.

Overview of PCB Assembly: Hand vs. Automated Pick and Place

Printed Circuit Board (PCB) assembly involves precisely placing electronic components onto a PCB surface. While hand assembly is sometimes used, especially in low-volume or prototype production, pick-and-place automation are preferred for larger-scale manufacturing. Here’s a detailed look at why pick and place is often more efficient, accurate, and reliable than manual assembly:

Key Advantages of Pick and Place Over Hand Assembly

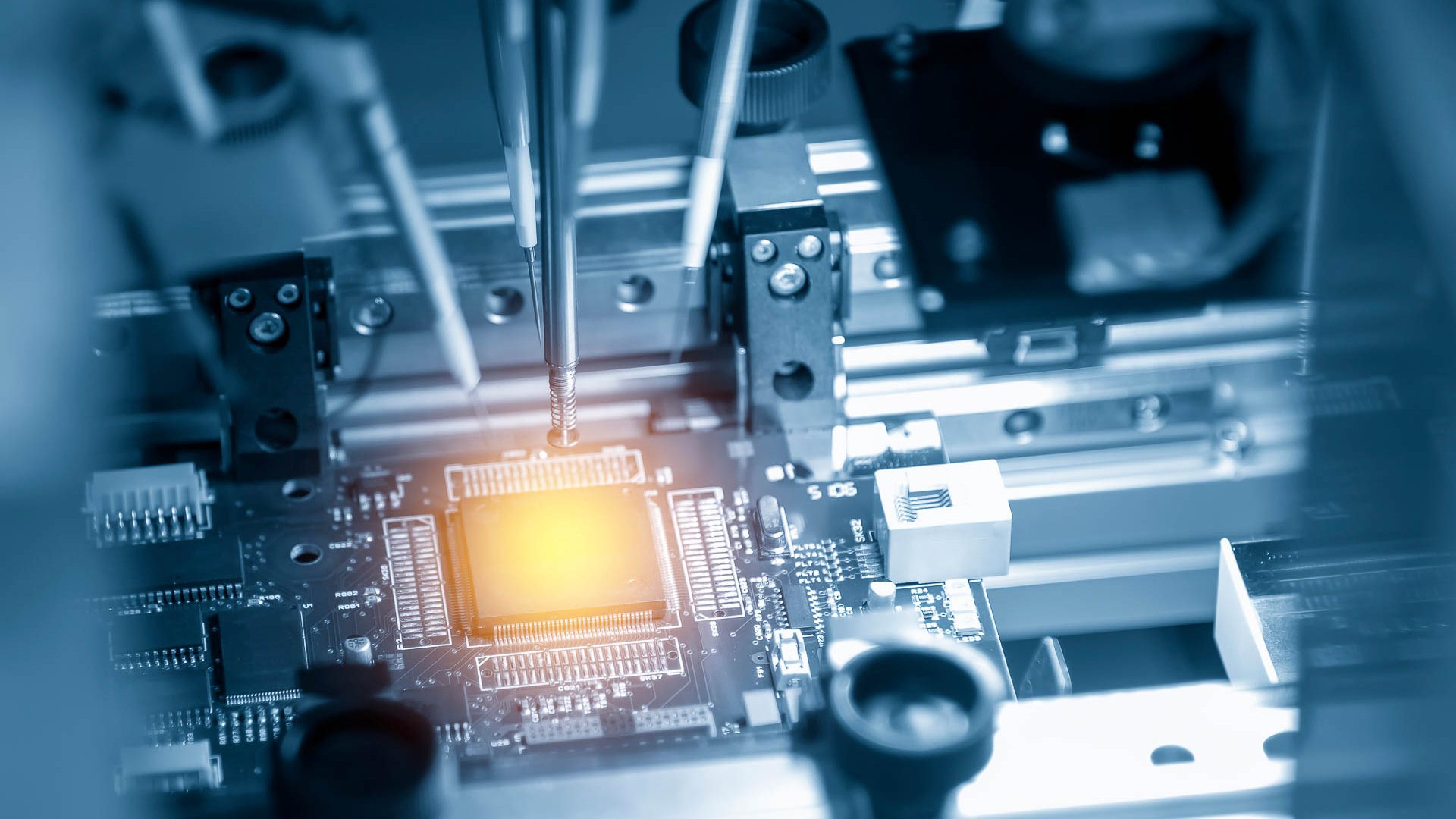

Comparison of pick-and-place machine vs. hand assembly in PCB manufacturing.

Paste Dries

  • In PCB assembly, solder paste is applied to the board before components are placed. Hand assembly can introduce delays, causing solder paste to dry before components are secured, which reduces solder quality. Pick-and-place machines, however, operate quickly and in a controlled environment, reducing paste drying time and improving solder bond integrity.

Repeatability

  • Hand assembly is subject to human error and fatigue, leading to inconsistencies between boards. Pick-and-place machines excel in repeatability, performing identical operations on each board, which ensures uniform placement accuracy and consistent quality across the production run.

Optical Inspection

  • Pick-and-place machines often integrate automated optical inspection (AOI), which scans each board for defects or misplacements immediately after component placement. This real-time inspection helps identify issues before they advance to the next stages, reducing rework and increasing overall product quality. In contrast, hand assembly often requires separate inspection processes, which can be slower and more error-prone.

In-Line Measurement

  • Advanced pick-and-place systems offer in-line measurement capabilities, where they measure components and placements in real-time. This feature improves accuracy by compensating for component size variations and tolerances. In hand assembly, these measurements would be either impossible or extremely time-consuming.

Rotation

  • Proper component rotation is essential, especially for components like ICs, capacitors, or diodes, which must be placed at specific orientations. Pick-and-place machines can rotate components precisely before placement, ensuring they align correctly with the PCB’s solder pads. Hand assembly, however, may result in incorrect orientations and misalignments due to human error.

Precision

  • With the rise of miniaturized components, such as 0201-sized capacitors and resistors, precision has become crucial. Pick-and-place machines can place components with remarkable accuracy (as small as ±0.03 mm). Manual placement with tweezers can never achieve the same level of precision, increasing the likelihood of poor soldering and reduced reliability.

Tweezers Damage Components

  • In hand assembly, technicians use tweezers to place components, but this method risks damaging sensitive components, especially tiny and fragile ones. Pick-and-place machines handle components with specialized nozzles designed to minimize stress and damage. The gentler handling of components during automated assembly preserves their integrity.

Software

  • Modern pick-and-place systems come with sophisticated software that manages component libraries, placement positions, rotation, and more. The software optimizes placement paths and provides real-time feedback, making adjustments as needed. Manual assembly lacks this automated intelligence, relying solely on operator expertise and manual intervention, which is less efficient and more error-prone.

Testing for Large-Scale Manufacturing

  • Pick-and-place machines are highly suitable for large-scale manufacturing as they are fast, consistent, and scalable. Automated assembly is designed to produce hundreds or thousands of boards without interruption. In contrast, hand assembly is labor-intensive and cannot match the speed or scale required for mass production, making it impractical for high-volume manufacturing.

File Checks

  • Pick-and-place software can perform file checks and verification against original design files (Gerber files) to ensure the correct components and placements are used. This capability helps catch errors before production starts, preventing costly mistakes. Manual assembly lacks these automated checks, making it more vulnerable to design file inconsistencies or misinterpretations.

Hand Assembly vs. Automated Pick and Place: A Side-by-Side Comparison

Feature Hand Assembly Pick-and-Place Automation
Solder Paste Drying Time More prone to delays, risking paste drying inconsistencies Controlled timing to prevent drying before placement
Component Placement Accuracy Limited by human error; alignment may vary High precision in placement with micro-scale accuracy
Repeatability Difficult to maintain consistent placement Consistently accurate with minimal variation
Inspection Manual visual checks can miss minor errors Automated optical inspection detects small defects
In-Line Measurement Rarely used due to time constraints Real-time in-line measurement ensures quality
Rotation and Orientation Components may be misaligned or rotated incorrectly Precise orientation with automated rotation control
Damage Prevention Risk of damage to delicate components from tweezers Reduced risk due to non-contact, robotic handling
Software Integration Minimal or none, requiring manual processes Advanced software optimizes placement and checks
Scalability for Large Batches Labor-intensive and slow for high volumes Efficient for large-scale production, saving time
File Verification and Checks Manually checked, prone to error Automated verification against design files

Why Choose Pick and Place for Modern PCB Manufacturing?

While hand assembly may be suitable for specific, low-volume tasks, automated pick-and-place assembly offers distinct advantages in speed, precision, repeatability, and scalability. As PCB designs continue to evolve, incorporating smaller components and more complex layouts, the precision and consistency provided by pick-and-place machines become increasingly essential for maintaining quality in high-volume manufacturing.
